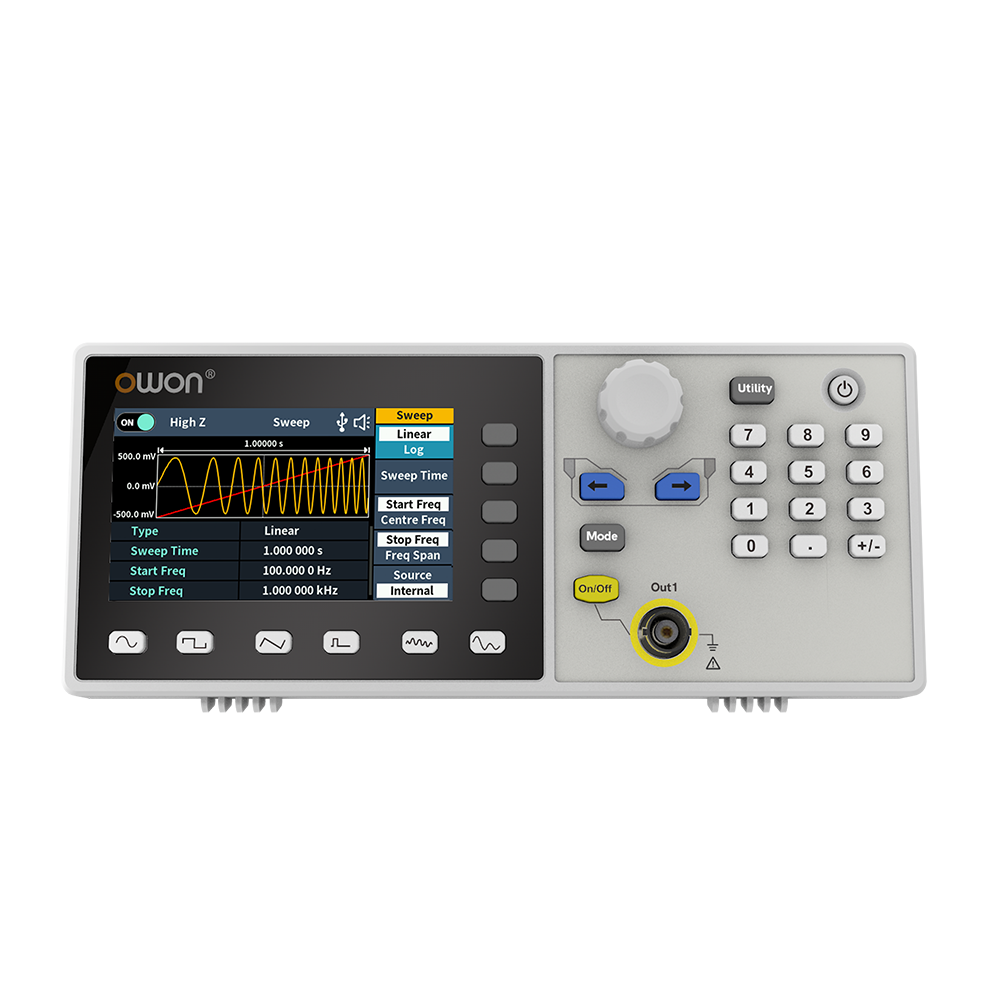

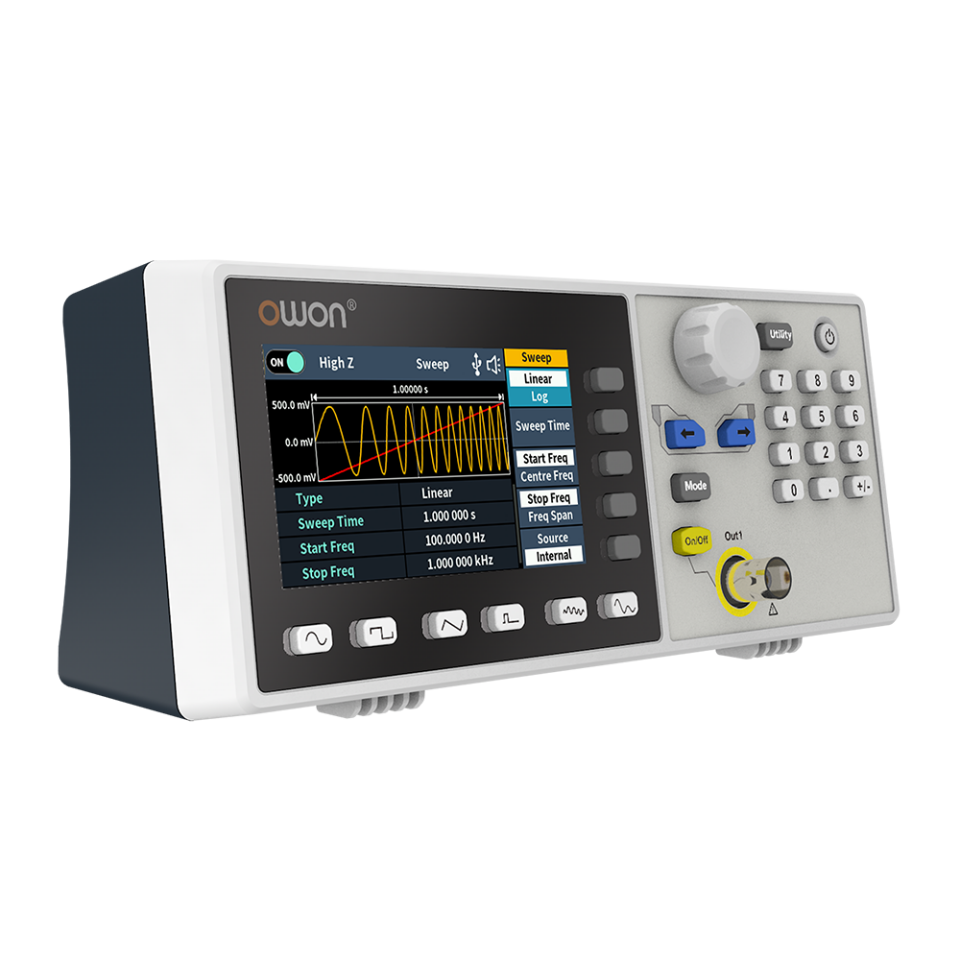

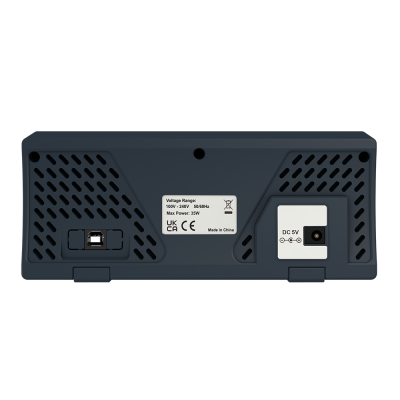

DGE1030 30 MHz Tek Kanal 125MSa/s Waveform Jeneratör

DGE1000 Serisi 1CH Dalga Formu Jeneratörü Genel Özellikler:

• 30MHz/60MHz frekans çıkışı
• Maksimum 300MSa/s Örnekleme hızı, Dikey çözünürlük 1μHz
• 14 bit Dikey Çözünürlük, 8K Arb dalga formu uzunluğu
• Kapsamlı dalga formu çıkışı: 5 temel dalga formu ve 150 yerleşik rastgele dalga formu
• Kapsamlı modülasyon fonksiyonları: AM, FM, PM, FSK, Süpürme ve Patlama
• SCPI desteklenir
• 3,6 inç (480 × 260 piksel) LCD

DGE1030 Genel Özellikleri:

• 35 MHz Frekans Output
• Tek Kanal
• 125MSa/s Örnekleme Oranı
• 14 Bits
• Standart Dalga Formları: sine, square, pulse, ramp, and noise

  Model	DGE1030	DGE1060
  Channel	1
  Frequency Output	35MHz	60MHz
  Sample Rate	125MSa/s	300MSa/s
  Vertical Resolution	14 bits
  Waveform
  Standard Waveform	sine, square, pulse, ramp, and noise
  Arbitrary Waveform	exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform
  Frequency
  Sine	1μHz - 30MHz	1μHz - 60MHz
  Square	1μHz - 15MHz	1μHz - 20MHz
  Pulse	1μHz - 15MHz	1μHz - 20MHz
  Ramp	1μHz - 1MHz	1μHz - 2MHz
  Noise	20MHz (-3dB，typical)
  Arbitrary Waveform	1μHz -10MHz
  Frequency Resolution	1 μHz or 7 significant figures
  Frequency Stability	±30 ppm at 0±40℃
  Frequency Aging Rate	±30 ppm per year
  Arbitrary
  Waveform Length	2 - 8K points
  Sample Rate	125Ma/s	300Ma/s
  Amplitude
  into 50Ω Load	1mVpp - 20Vpp（≤10MHz） 1mVpp - 4Vpp （≤60MHz）
  DC Offset Range (AD+DC)	±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω
  DC offset Resolution	1mV or 4digits
  Load Impedance	50Ω (typical)
  DC offset Accuracy	±(1 % of |setting| + 1 mV + amplitude Vpp x 0.5%)
  Modulation
  Type	AM, FM, PM, FSK, sweep, Burst
  Internal Modulation Frequency	2 mHz to 100 kHz
  Sweep
  Carrier	Sine, rectangular wave, ramp wave, arbitrary wave(Except DC)
  Minimum/Maximum Starting Frequency	2mHz（minimum）/ maximum frequency of corresponding carrier
  Minimum/Maximum Termination Frequency	2mHz（minimum）/ maximum frequency of corresponding carrier
  Trigger Source	internal, manual
  Burst
  Waveform	Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC)
  Types	N-Cycle
  Trigger source	Internal, manual
  Carrier frequency	1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2
  Input / Output
  Display	3.6-inch TFT LCD with resolution 480 x 272
  Communication Interface	USB Device
  Mechanical specifications
  Dimension (W×H×D)	200mm x 68.5mm x 74.5mm
  Weight (without package)	0.5kg
