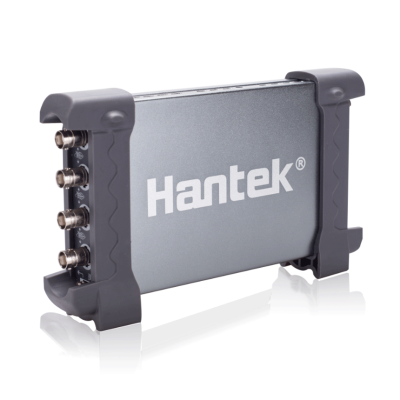

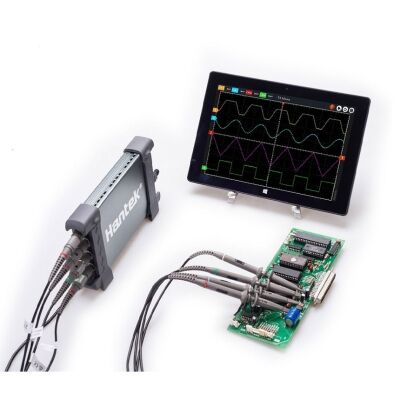

Hantek6254BD 250MHz 4 Kanal 1GSa/s Osiloskop

Model

Hantek6074BD / Hantek6104BD / Hantek6204BD / Hantek6254BD

Bant Aralığı

70MHz / 100MHz / 200MHz / 250MHz

4 CH

Real-time Örnekleme Oranı

1GSa/s

Hafıza Derinliği

64K

Time Base Precision

±50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1MΩ 25pF

Input Sensitivity

2mV/div～10V/div

Dikey Çözünürlük

8Bit

Vertical Displacement Range

2mV～10V/div @ x1 probe;

20mV～100V/div @ x10 probe；

200mV～1000V/div @ x100 probe;

2V～10000V/div @ x1000 probe

DC Gain Accuracy

±3%

Bandwidth Limit

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷,FFT, Invert

Cursors Ölçüm

Cross, Trace, Horizontal, Vertical

Oto Ölçüm

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Arbitrary Waveform Generator Mod

Dalga Formu Frekansı

DC~25MHz

DAC

2K~200MHz adjustable

Frekans Çözünürlüğü

0.10%

Kanal

1CH waveform output

Dalga Formu Derinliği

2KSa

Dikey Çözünürlük

12 bit

Frekans Sabitliği

<30ppm

Wave Amplitude

±3.5V Max.

Output Impedance

50 Ω

Output Current

50mA, Ipeak=50mA

System BW

25M

Harmonic Distortion

-50dBc(1KHz),  -40dBc(10KHz)

Genel Özellikler

Boyutlar

175mm * 105mm * 25mm
