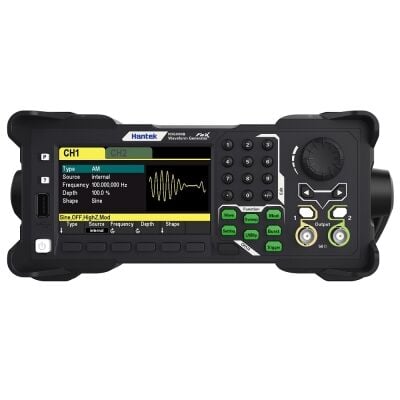

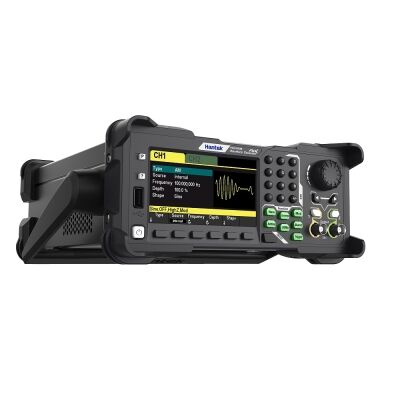

HDG3012B 15MHz 2 Kanal 250MSa/s Arbitrary Waveform Jeneratör

HDG3000B Genel Özellikler:

• Frekans aralığı: 1μHz ~ 100MHz / 80MHz / 60MHz / 40MHz / 25MHz / 15MHz.
• 250MSa / s'ye kadar örnekleme hızı, analog dalga formlarında bozulma yok.
• 16 bit dikey çözünürlük, dalga formu genliğinin doğruluğunu sağlar.
• İki bağımsız sinyal kaynağına eşdeğer, eşit performansa sahip çift kanallarla donatılmıştır.
• 2 M'ye kadar depolama derinliği, daha fazla dalga formu döngüsü ve daha iyi dalga formu ayrıntılarının oluşturulmasını sağlar.
• 4,3 inç renkli TFT LCD ekran, net ve sezgisel bir kullanıcı arayüzü.
• Zengin modülasyon işlevi, AM, DSB - AM, FM, PM, ASK, FSK ve PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK ve PWM vb. desteği.
• 1μHz frekans çözünürlüğü: Empedans yüksek olduğunda, genlik aralığı 2mV ~ 20Vpp'dir. Empedans 50Ω olduğunda, genlik aralığı 1mV ~ 10Vpp'dir.
• Dahili 80MHz yüksek çözünürlüklü frekans ölçer.

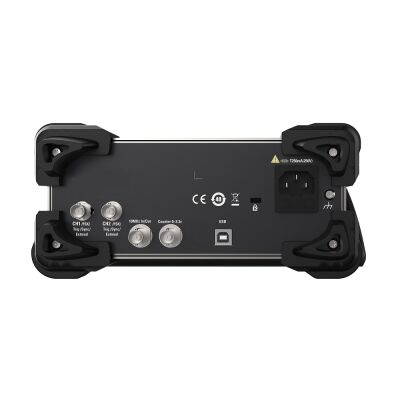

• Standart iletişim arayüzü: ön USB 2.0 yüksek hız (USB Host) ve arka USB 2.0 tam hız (USB Aygıtı).
• Üstel artış, üstel düşüş, EKG sinyali, Gauss, yarı pozitif vektör, Lorentz, çift tonlu çok frekanslı, DC voltajı vb. gibi 160'tan fazla türde keyfi sinyal.
• Dahili 16 harmonik jeneratör fonksiyonu, belirtilen frekans, genlik ve harmonik fazı ile çıkış, genellikle harmonik algılama ekipmanında veya harmonik filtre ekipmanı testinde kullanılır.

HDG3012B Genel Özellikleri:

• 2 Kanal
• 2M Wavelength
• 15MHz Frekans Aralığı
• 250MSa/s Örnekleme Oranı
• 16 Bits

  Model	HDG3102B	HDG3082B	HDG3062B	HDG3042B	HDG3022B	HDG3012B
  Channel	2
  Wavelength	2M
  Frequency range	100MHz	80MHz	60MHz	40MHz	25MHz	15MHz
  Sampling rate	250MSa/s
  Voltage resolution	16Bits
  Waveform
  Standard waveform output	sine wave, square wave, triangular wave, pulse wave, noise, harmonics
  Arbitrary waveform output	160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
  Frequency property
  Sine wave	1 μHz ~ 100 MHZ	1 μHz ~ 80 MHZ	1 μHz ~ 60 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 25 MHZ	1 μHz ~ 15 MHZ
  Square wave	1 μHz ~ 15MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
  Pulse wave	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
  Triangle wave	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ
  Harmonic	1 μHz ~ 50 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 30 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 10 MHZ	1 μHz ~ 5 MHZ
  Noise (3 db)	100 MHZ bandwidth
  Arbitrary wave	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
  Resolution	1μHz
  Precision	±1ppm, 18~28℃
  Square wave property
  Rise/Fall time	Typical (1kHz, 1Vpp)
  	≥9ns
  Overshoot	Typical (100kHz, 1Vpp)
  	≤5%
  Duty cycle	0.001% ~ 99.999%;
  	The range varies with the frequency
  Asymmetry	1% of the period plus 4ns
  Triangular wave property
  Linear	≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
  Symmetry	0% ~ 100%
  Impulse wave property
  Cycle	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms	67ns~1Ms
  Pulse	≥16ns	≥16ns	≥16ns	≥16ns	≥16ns	≥16ns
  Rise/Fall time	≥9ns (limited by current frequency setting and pulse width setting)
  Overshoot	Typical (1kHz, 1Vpp)
  	≤5%
  Arbitrary wave property
  Wavelength	2M
  Vertical resolution	16 Bits
  Sampling rate	1μSa/s~62.5 MSa /s, 1μSa/s resolution
  Time of rise/fall	Ns of 9 or higher
  Overshoot	Typical (1Vpp)
  	≤5%
  Harmonic property
  Harmonic frequency	≤16
  Harmonic type	Even harmonics, odd harmonics, all harmonics
  Harmonic amplitude	All harmonic amplitude can be set.
  Harmonic phase	All harmonic amplitude can be set.
  Amplitude property (50Ω terminal)
  Amplitude range	≤10MHz: 1mVpp ~ 10Vpp;
  	≤55MHz: 1mVpp ~ 5.5Vpp;
  	≤80MHz:1mVpp ~ 3.5Vpp;
  	≤100MHz:1mVpp ~ 2Vpp;
  Precision	Typical (1kHz sine wave, 0V offset, > 10mVPP)
  	± 1% setting value ± 5mVpp
  Amplitude flatness (relative to 1kHz sine wave, 1Vpp, 50Ω)	≤5MHz: ±0.1dB;
  	≤15MHz: ±0.2dB;
  	≤25MHz: ±0.3dB
  	≤40MHz: ±0.5dB
  	40MHz: ±1.0dB
  Unit	Vpp, mVpp, Vrms, dBm(50Ω impedance)
  Resolution	1mVpp
  Offset property (50Ω terminal)
  Scope	±5Vpkac+dc
  Precision	±(1% of the setting value + 5mV + 1% of the amplitude)
  Waveform output
  Impedance	50 Ω
  Modulation property
  Modulation type	AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM
  AM
  Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
  Modulation source	Internal, external and other channels
  Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, Lorentz, dual audio, gaussian, ecg
  Modulation frequency	2mHz~1MHz
  Modulation depth	0% ~ 120%
  DSB-AM
  Carrier	Sine wave, square wave, triangular wave, pulse wave, harmonic wave, arbitrary wave (except DC)
  Modulation source	Internal, external and other channels
  Modulation wave	Sine wave, square wave, triangle wave, noise, sampling wave, exp drop, half vector, lorentz, dual audio, gaussian, ecg
  Modulation frequency
