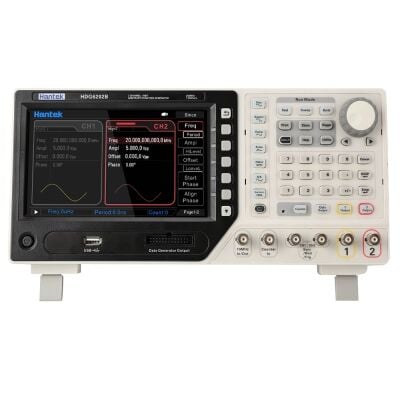

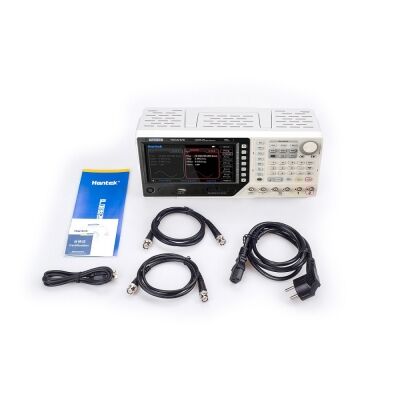

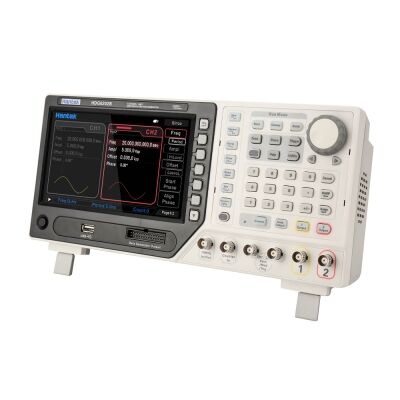

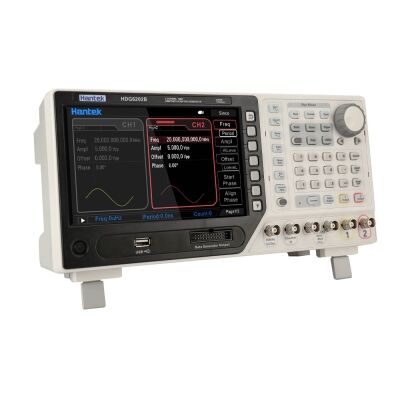

Hantek HDG6202B 200MHz 2 Kanal 64M Dalga Formu Uzunluğunda Arbitrary Waveform Jeneratör

HDG6000B Genel Özellikler:

HDG6000B serisi, keyfi dalga formu üreteci, darbe üreteci, 16 bitlik kelime üreteci, 7 basamaklı simometre ve fonksiyon üreteci gibi çok işlevli bileşenleri bir araya getirir. Kararlı, doğru ve düşük bozulmalı sinyaller üretebilir ve çıktı verebilir. Çeşitli sinyalleri simüle etmeyi kolaylaştıran 150'den fazla tür keyfi dalga formu yerleşiktir. Geniş ekranı, kullanıcı dostu arayüz tasarımı ve klavye düzeni kullanımı kolaydır. Zengin standart yapılandırma arayüzleri, cihazın uzaktan kontrolünü kolayca sağlar.

• Çıkış frekans aralığı: 1uHz ~ 200MHz / 160MHz / 110MHz / 80MHz;
• 1,25GSa/s'ye kadar örnekleme hızı, çıkış dalga formunun doğruluğunu sağlamak için 16 bit dikey çözünürlük;
• Daha iyi dalga formu ayrıntısı oluşturmayı sağlayan 64M'ye kadar bellek derinliği;
• Geniş ve net ekran (7.0 inç LCD renkli ekran, 800x640'a kadar çözünürlük), kullanıcı arayüzü net ve sezgiseldir;
• Zengin bir modülasyon fonksiyonları seti, AM, FM, PM, 2ASK, 2FSK, 2PSK ve PWM vb. desteği;
• 1uHz frekans çözünürlüğü; minimum 2mv çıkış genliği;
• Dahili 7 basamaklı yüksek çözünürlüklü 200MHz simometre; isteğe bağlı daha yüksek performanslı simometre ile;
• Standart iletişim arayüzü: HDG6000B serisi: USB Host, USB Aygıtı;
• Üstel yükselme, üstel düşüş, EKG sinyali, Gauss, yarı pozitif, Lorentz, çift tonlu çoklu frekans, DC voltajı vb. dahil olmak üzere 150'den fazla rastgele dalga formu dahili.

HDG6202B Genel Özellikleri

• 2 Kanal
• 200MHz Frekans Aralığı
• 64M Dalga formu uzuluğu
• 1.25GSa/s Örnekleme Oranı
• 16Bits
• 16 Kanal Output
• Standart: sine, square, triangle, pulse, noise, harmonic Specification

  Model	HDG6202B	HDG6162B	HDG6112B	HDG6082B
  Main Feature
  Channel	2	2	2	2
  Waveform Length	64M
  Frequency Range	200MHz	160MHz	110MHz	80MHz
  Sampling Rate	1.25GSa/s
  Voltage Resolution	16 Bit
  Digit Output Mode	16 channels output
  Waveform
  Standard Waveform	sine, square, triangle, pulse, noise, harmonic
  Arb. Waveform	More than 150 kinds: index rise, exponential decline, ECG signal, Gaussian, semi-positive, Lorentz, dual-tone multi-frequency, DC voltage, etc.
  Frequency Characteristics
  Sine	1uHz~200MHz	1uHz~160MHz	1uHz~110MHz	1uHz~80MHz
  Square	1uHz~60MHz	1uHz~50MHz	1uHz~40MHz	1uHz~35MHz
  Pulse	1uHz~50MHz	1uHz~40MHz	1uHz~25MHz	1uHz~20MHz
  Triangle	1uHz~5MHz	1uHz~4MHz	1uHz~3MHz	1uHz~2MHz
  White Noise	120MHz	120MHz	110MHz	80MHz
  Harmonic	1uHz~100MHz	1uHz~80MHz	1uHz~55MHz	1uHz~40MHz
  Arbitrary	1uHz~50MHz	1uHz~40MHz	1uHz~25MHz	1uHz~15MHz
  Resolution	1uHz
  Accuracy	±2ppm, 18~28℃
  Sine Spectrum Purity
  Harmonic Distortion	Typical (0dBm)
  	DC-1MHz: <-60dBc
  	1MHz-10MHz: <-55dBc
  	10MHz-100MHz: <-50dBc
  	100MHz-160MHz: <-40dBc
  THD (Total Harmonic Distortion)	<0.1% (10Hz-20kHz, 0dBm)
  Spurious Signal (Non-harmonic)	Typical (0dBm)
  	≤10MHz: <-65dBc
  	>10MHz: <-65dBc+6dB/octave
  Phase Noise	Typical (0dBm,10KHz offset)
  	0MHz: ≤-115dBc/Hz
  Square Characteristics
  Rising/Falling Time	Typical (1Vpp)		Typical (1Vpp)	Typical (1Vpp)
  	<8ns		<10ns	<12ns
  Overshoot	Typical (100KHz, 1Vpp)
  	<3%
  Duty Cycle	≤10MHz: 20.0%~80.0%
  	10MHz~40MHz: 40.0%~60.0%
  	>40MHz: 50.0% (fixed)
  Asymmetry	1% +5ns of Period
  Jitter	Typical (1MHz,1Vpp, 50Ω)
  	≤ 5MHz: 2ppm+500ps
  	> 5MHz: 500ps
  Triangle Characteristics
  Linear	≤1% (1KHz, 1Vpp) of Peak Output
  Symmetry	0%~100%
  Pulse Characteristics
  Period	25ns~1Ms	25ns~1Ms	40ns~1Ms	50ns~1Ms
  Pulse	≥10ns	≥10ns	≥12ns	≥15ns
  Rising/Falling Time	≥5ns	≥6ns	≥8ns	≥10ns
  Overshoot	<3% (1Vpp)
  Jitter	Typical (1MHz, 1Vpp, 50Ω)
  	≤ 5MHz 2ppm+500ps
  	> 5MHz 500ps
  Arbitrary Characteristics
  Waveform Length	64M
  Vertical Resolution	16 Bit
  Sampling Rate	1.25GSa/s
  Rising/Falling Time	Typical (1Vpp): <6ns
  Jitter	Typical (1MHz, 1Vpp, 50Ω)
  	≤ 5MHz 2ppm+500ps
  	> 5MHz 500ps
  Harmonic Output Characteristics
  Harmonic Times	≤16 times
  Harmonic Type	Even harmonics, odd harmonics, sequential harmonics
  Harmonic Amplitude	Each harmonic amplitude can be set
  Harmonic Phase	Each harmonic phase can be set
  Amplitude Characteristics ( 50ΩTermination)
  Range	≤20MHz: 1mVpp ~ 10Vpp
  	≤80MHz: 1mVpp ~ 5Vpp
  	≤110MHz:1mVpp ~ 2.5Vpp
  	≤160MHz:1mVpp ~ 1Vpp
  	≤200MHz:1mVpp ~ 0.5Vpp
  Accuracy	1KHz Sine, 0V offset (±|1%±2mVpp| of setting value)
  Amplitude flatness (relative to 1 kHz sine wave, 500 mVpp, 50 Ω)	≤1MHz: ±0.1dB	≤1MHz: ±0.1dB	≤1MHz: ±0.1dB	≤1MHz: ±0.1dB
  	≤60MHz: ±0.2dB	≤60MHz: ±0.2dB	≤60MHz: ±0.2dB	≤60MHz: ±0.2dB
  	≤100MHz: ±0.4dB	≤100MHz: ±0.4dB	≤100MHz: ±0.4dB
  	≤160MHz: ±0.8dB	≤160MHz: ±0.8dB
  	≤200MHz: ±1.2dB
  Unit	Vpp, mVpp, Vrms
  Resolution	1mV
  Impedance	50Ω
  Offset Characteristics (50Ω termination)
  Range	|Voltset| < Vmax – Vpp/2
  Accuracy	± (1% of setting + 5mV + 0.5% of amplitude)
  	± ( |1% + 5mV| of setting value + 0.5% of amplitude)
  Modulation Characteristics
  Modulation Type	AM, FM, PM, 2ASK, 2FSK, 2PSK, BPSK, PWM
  AM
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Modulation Source	Internal, external, other channels
  Modulation Wave	Sine, Square, Triangle, White Noise, Arbitrary
  Modulation Frequency	2mHz~50KHz
  Modulation Depth	0%~120%
  FM
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Modulation Source	Internal, external, other channels
  Modulation Wave	Sine, Square, Triangle, White Noise, Arbitrary
  Modulation Frequency	2mHz~50KHz
  PM
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Modulation Source	Internal, external, other channels
  Modulation Wave	Sine, Square, Triangle, White Noise, Arbitrary
  Modulation Frequency	2mHz~50KHz
  Phase Deviation	0° to 360°
  2ASK
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Modulation Source	Internal, external
  Modulation Wave	50% duty cycle square wave
  Modulation Frequency	2mHz~1MHz
  2FSK
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Modulation Source	Internal, external
  Modulation Wave	50% duty cycle square wave
  Modulation Frequency	2mHz~1MHz
  2PSK
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Modulation Source	Internal, external
  Modulation Wave	50% duty cycle square wave
  Modulation Frequency	2mHz~1MHz
  BPSK
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Modulation Source	Internal
  Modulation Wave	01 yard
  Modulation Frequency	2mHz~1MHz
  PWM
  Carrier Wave	Square
  Modulation Source	Internal, external, other channels
  Modulation Wave	Sine, square, sawtooth, noise, arbitrary
  Modulation Frequency	2mHz~50KHz
  Width Deviation	0% to 100% of Pulse Width
  	0% to 100% of the pulse width
  External Modulation Input
  Max. Input Range	75mVRMS to ±2.5Vac+dc
  Input Bandwidth	10MHz
  Input Impedance	1KΩ
  Sweep Characteristics
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Type	Linear
  Direction	Top
  Sweep	1ms to 50Ks
  Hold/return Time	1ms to 50Ks
  Trigger Source	Internal, external, manual
  Mark	Falling edge of the sync signal (programmable)
  Burst Characteristics
  Carrier Wave	Sine, Square, Triangle, Pulse, Harmonic, Arbitrary (except DC)
  Carrier Frequency	2mHz to 100MHz		2mHz to 100MHz	2mHz to 80MHz
  Pulse Count	1 to 2000 000 000
  Start/Stop Phase	0° to 360°
  Internal Cycle	2μs to 500s
  Gating Source	External Trigger
  Trigger Source	Internal, external, manual
  Cymometer
  Measurement Function	Frequency, period, positive/negative pulse width, duty cycle
  Frequency Resolution	7 bits/s
  Frequency Range	1uHz~200MHz
  Input Level	TTL level
  Gate Time	10ms~16s
  Voltage Range and Sensitivity (Non-modulated Signal)
  DC Coupling	DC Offset Range	±1.5VDC
  	1μHz to 100MHz	50mVRMS to ±2.5Vac+dc
  	100MHz to 200MHz	100mVRMS to ±2.5Vac+dc
  Pulse Width and Duty Cycle Measurement
  Frequency and Amplitude Range	1μHz to 25MHz	50mVRMS to ±2.5Vac+dc
  Pulse Width	Min. Pulse Width	≥100ns
  	Pulse Width Resolution	8ns
  Duty Cycle	Measuring range (display)	0% to 100%
  Input Characteristic
  Input Signal Range	Destruction Voltage	±5Vac+dc	Input Impedance =500Ω
  Input Trigger	Trigger Level Range	-2.5V to +2.5V
  	Trigger Sensitivity Range	0% (140mV hysteresis voltage) to 100% (2mV hysteresis voltage)
  	Trigger characteristics
  Trigger Input
  Level	TTL-compatible
  Slope	Rise or fall (optional)
  Pulse Width	>50ns
  Reference Clock
  External Reference Input
  Lock Range	10MHz±50Hz
  Level	2.5Vpp to 5Vpp
  Lock Time	<2s
  Input Impedance	5kΩ, AC Coupling
  Internal Reference Input
  Frequency	10MHz ± 50Hz
  Level	3.3Vpp
  Output Impedance	5kΩ, AC Coupling
  Synchronous Output
  Level	TTL-compatible
  Impedance	50Ω, nominal value
  General Characteristics
  Interface	HDG6000B: USB Host, USB Device, Optional RS232 port
  	HDG6000C: USB Host, USB Device, LAN port, Wi-Fi, Touch Screen, Optional RS232 port
  Display	7 inch, 64K color, TFT LCD Screen, 800*640
  Voltage	100-240V, 45Hz - 440Hz
  Power	<50W
  Environment
  Temperature Range	Operation: 10 ° C to 40 ° C Non-operation: -20 ° C to 60 ° C
  Cooling Method	Fan forced cooling
  Humidity Range	Less than 35 ° C: ≤ 90% relative humidity 35 ° C to 40 ° C: ≤ 60% relative humidity
  Altitude	Operation: 3000 meters or less; Non-operation: 15000 meters or less
  Mechanical Specifications
  Dimension	318 x 110 x 150mm (L x W x H)
  Weight	3KG
