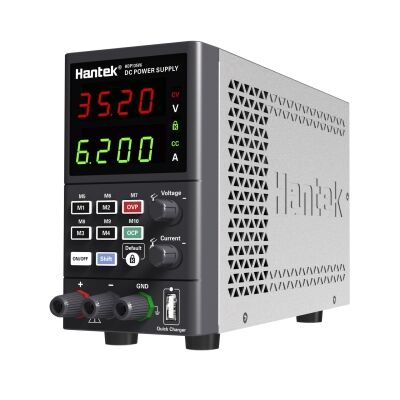

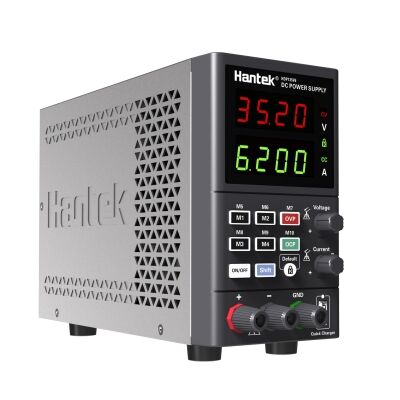

Hantek HDP135V6A 35V 6A 210W DC Güç Kaynağı
5.961,60 TL Kdv Dahil
3.726,00 TL Kdv Dahil
%38
KDV Dahil Fiyat
3.726,00 TL
1.900,26 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
NJVDL4X5DU
Havale
3.614,22 TL
(%3,00 havale indirimi)
Hantek HDP135V6A 35V 6A 210W DC Güç Kaynağı
| Model | HDP135V6A |
| Load regulation | ≤0.1% + 5mV |
| Linear regulation | ≤0.01% + 5mV |
| Setting resolution | 10mV |
| Setting precision | ≤0.1% + 1 digits |
| Read back resolution | 10mV |
| Read back accuracy | ≤0.1% + 1 digits |
| Ripple | 10mVrms |
| Yüksek Voltaj Koruması (OVP) | 37V ± 0.2%FS |
| Max Voltaj | 35.2V± 0.2% |
| Voltaj | |||
| Load regulation | ≤0.1% + 5mV | ||
| Linear regulation | ≤0.01% + 5mV | ||
| Setting resolution | HDP135V6 | 10mV | |
| HDP135V6A | 10mV | ||
| HDP135V6B | 10mV | ||
| HDP135V6S | 10mV | ||
| HDP180V8S | 10mV | ||
| HDP1160V4S | 0~100V | 10mV | |
| 100~160V | 100mV | ||
| Setting precision | ≤0.1% + 1 digits | ||
| Read back resolution | HDP135V6 | 10mV | |
| HDP135V6A | 10mV | ||
| HDP135V6B | 10mV | ||
| HDP135V6S | 10mV | ||
| HDP180V8S | 10mV | ||
| HDP1160V4S | 0~100V | 10mV | |
| 100~160V | 100mV | ||
| Read back accuracy | ≤0.1% + 1 digits | ||
| Ripple | HDP135V6 | 10mVrms | |
| HDP135V6A | 10mVrms | ||
| HDP135V6B | 10mVrms | ||
| HDP135V6S | 10mVrms | ||
| HDP180V8S | 10mVrms | ||
| HDP1160V4S | 15mVrms | ||
| Overvoltage protection(OVP) | HDP135V6 | 0 ~ 37V ± 0.2%FS | |
| HDP135V6A | 0 ~ 37V ± 0.2%FS | ||
| HDP135V6B | 0 ~ 37V ± 0.2%FS | ||
| HDP135V6S | 0 ~ 37V ± 0.2%FS | ||
| HDP180V8S | 0 ~ 88V ± 0.2%FS | ||
| HDP1160V4S | 0 ~ 176V ± 0.2%FS | ||
| Maximum voltage | HDP135V6 | 35.2V ± 0.2% | |
| HDP135V6A | 35.2V ± 0.2% | ||
| HDP135V6B | 35.2V ± 0.2% | ||
| HDP135V6S | 35.2V ± 0.2% | ||
| HDP180V8S | 81V± 0.2% | ||
| HDP1160V4S | 162V± 0.2% | ||
| Akım | |||
| Load regulation | ≤0.2% + 3mA | ||
| Linear regulation | ≤0.2% + 3mA | ||
| Setting resolution | 1mA | ||
| Setting precision | ≤0.2% + 3mA | ||
| Read back resolution | 1mA |
||
