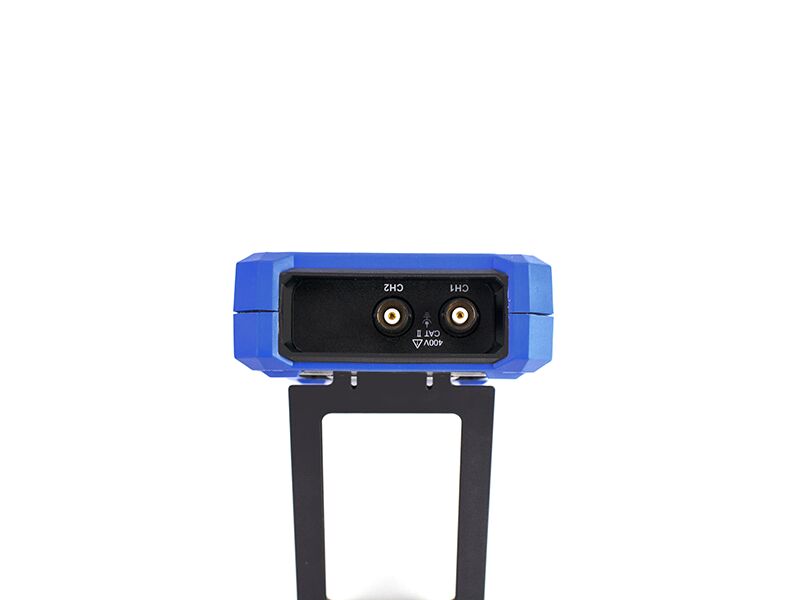

HDS272 70 MHz Tek Kanal 250MSa/s Dijital Osiloskop

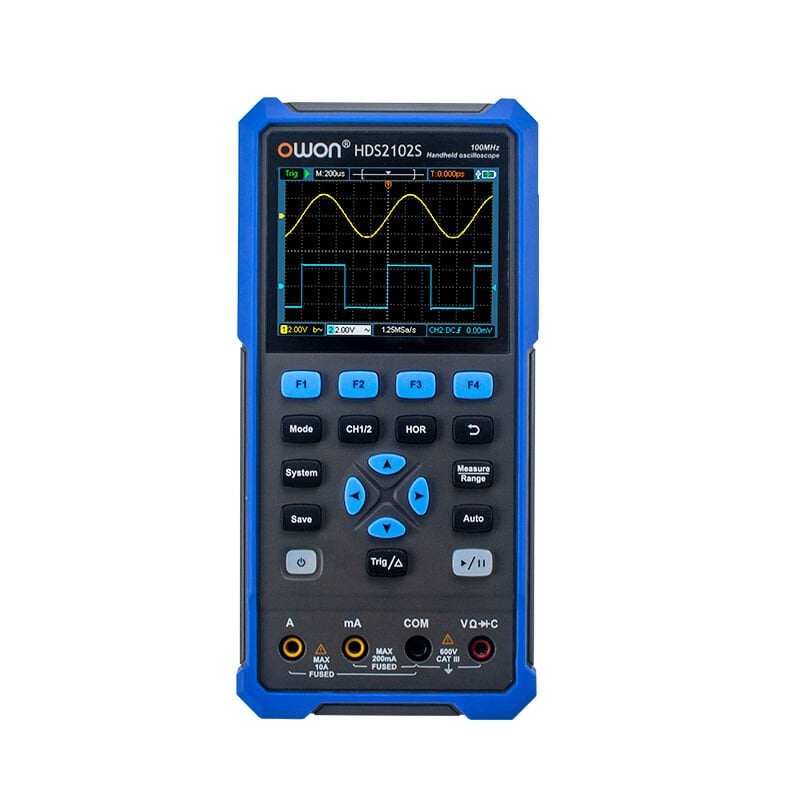

OWON HDS200 Serisi Dijital Osiloskop Genel Özellikleri:
- Osiloskop + multimetre + dalga formu üreteci
- 3,5 inç yüksek çözünürlüklü, yüksek kontrastlı renkli LCD ekran, dış mekan kullanımı için uygundur
- 18650 lityum pil, 3-6 saat boyunca sürekli çalışabilir
- USB Type-C arayüzü, powerbank ve PC yazılım bağlantısını destekler
- Kendi kendini kalibre etme işlevi
- SCPI desteklenir, ikincil geliştirmeyi kolaylaştırır
HDS272 Genel Özellikleri:
- 70MHz Bant Genişliği
- 2 Kanal
- 500MSa/s Örnekleme Oranı
- 8K Kayıt Uzunluğu
Model
HDS25(S)
HDS242(S)
HDS272(S)
HDS2102(S)
HDS2202(S)
Bandwidth
25MHz
40MHz
70MHz
100MHz
200MHz
Channels
2-CH
Sample Rate
250MSa/s
500MSa/s
1GSa/s
Acquisition Model
Normal, Peak detect
Record Length
8K
Display
3.5-inch LCD
Waveform Refresh Rate
10,000 wfrms/s
Input Coupling
DC, AC, and Ground
Input Impedance
1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors
1X,10X,100X,1000X,10000X
Max. input Voltage
400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical)
20MHz
Horizontal Scale
5ns/div - 1000s/div, step by 1 - 2 - 5
2ns/div - 1000s/div, step by 1 - 2 - 5
Vertical Sensitivity
10mV/div - 10V/div
Vertical Resolution
8 bits
Trigger Type
Edge
Trigger Modes
Auto, Normal, single
Automatic Measurement
Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor Measurement
ΔV, ΔT, ΔT&ΔV between cursors
Communication Interface
USB Type-C
「Multimeter」Specifications (Standard)
Max. Resolution
20,000 counts
Testing Mode
Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance
10MΩ
Max Input Voltage
AC 750V, DC 1000V
Max Input Current
DC : 10A AC : 10A
Diode
0 - 2V
「Waveform Generator」Specifications (Only for HDS25S, HDS242S, HDS272S, HDS2102S, HDS2202S)
Frequency Output
Sine
0.1Hz - 25MHz (HDS242S, 272S, 2102S, 2202S)
0.1Hz - 10MHz (HDS25S)
Square
0.1Hz - 5MHz (HDS242S, 272S, 2102S, 2202S)
0.1Hz - 2MHz (HDS25S)
Ramp
0.1Hz - 1MHz
Pulse
0.1Hz - 5MHz
Arbitrary
0.1Hz - 5MHz
Sampling Rate
125MSa/s
Channel
1-CH
Amplitude Range (high impedance)
20 mVpp - 5 Vpp
Waveform Length
8K
Vertical Resolution
14bits
Output Impedance
50Ω
