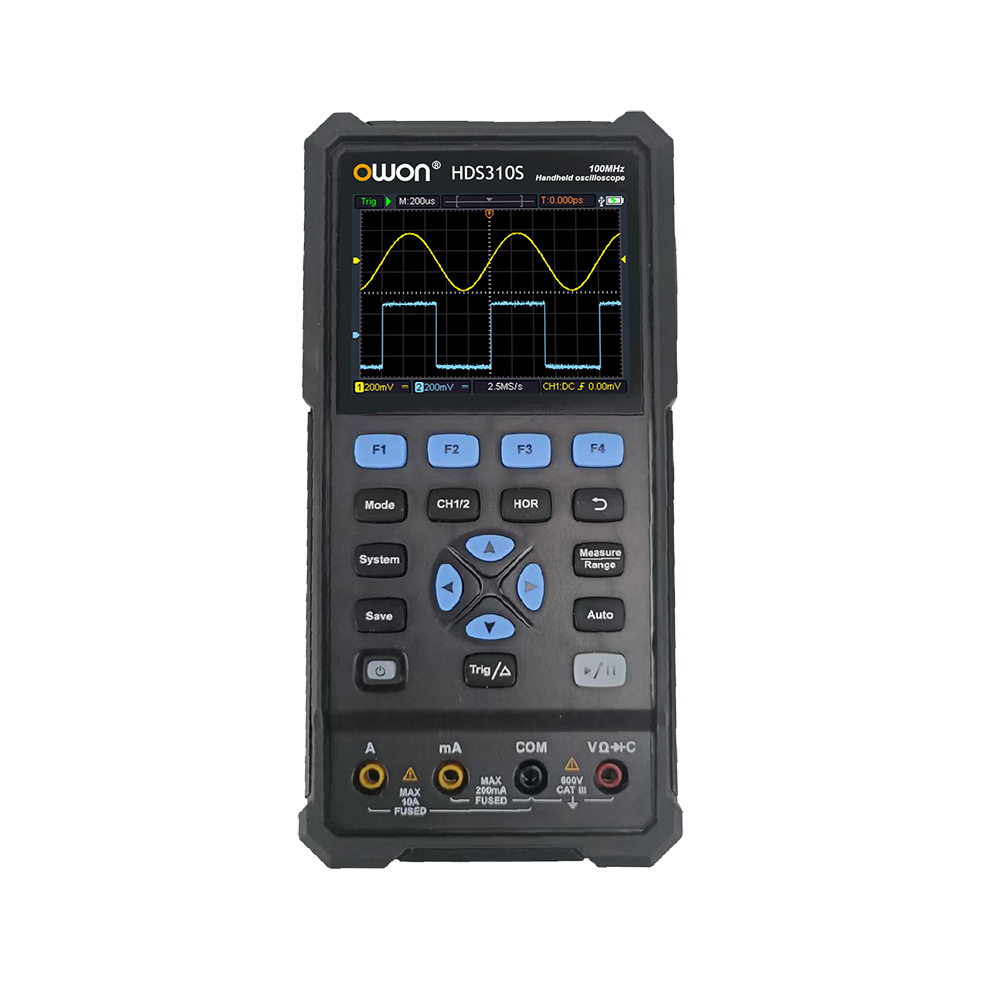

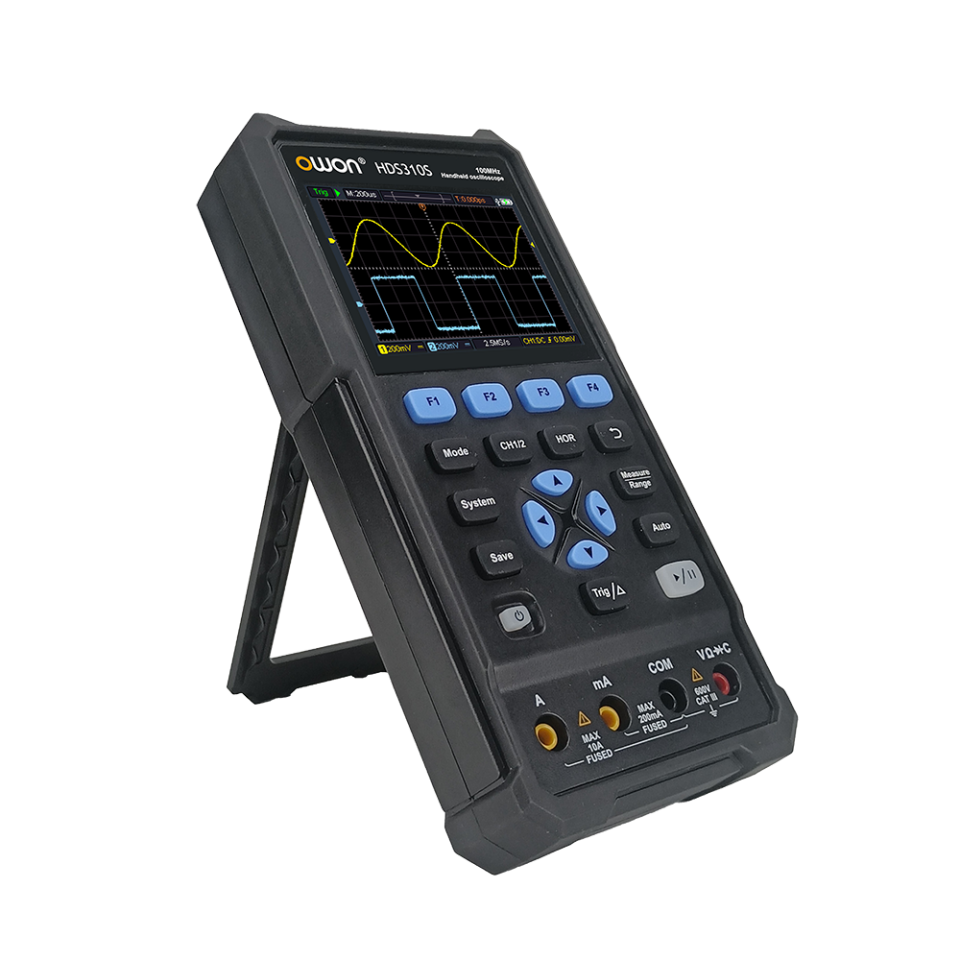

HDS320S 200 MHz Tek Kanal 1GSa/s Dijital Osiloskop

OWON HDS300 Serisi Dijital Osiloskop Genel Özellikleri:

• Osiloskop + multimetre + dalga formu üreteci
• 3,5 inç yüksek çözünürlüklü, yüksek kontrastlı renkli LCD ekran, dış mekan kullanımı için uygundur
• 18650 lityum pil
• USB Type-C arayüzü, güç bankasını destekler, PC yazılım bağlantısını destekler
• Kendi kendini kalibre etme işlevi
• SCPI desteklenir, ikincil geliştirmeyi kolaylaştırır

HDS320S Genel Özellikleri:

• 200MHz Bant Genişliği
• 2+1(Sinyal Jeneratörü) Kanal
• 1 GSa/s Örnekleme Oranı
• 8K Kayıt Uzunluğu 「Oscilloscope」Specifications

  Model	HDS307S	HDS310S		HDS320S
  Bandwidth	70MHz	100MHz		200MHz
  Channel	2+1(signal generator)
  Sample rate	250MSa/s	500MSa/s		1GS/s
  Acquisition model	Sample, Peak detect
  	Sample, Peak detect
  Record length	8K
  Display	3.5 inch LCD
  Waveform refresh rate	10000 wfrms/s
  Input coupling	DC, AC ,Ground
  Input impedance	1 MΩ±2%, in parallel with 16 pF±10 pF
  Probe attenuation	1X,10X,100X,1000X,10000X
  Max. input voltage	400V (DC+AC, PK - PK)
  Bandwidth limit(typical)	20MHz / Full bandwidth
  Sampling rate range	5ns/div ~ 1000s/div,step by 1 – 2 - 5		2ns/div ~ 1000s/div,step by 1 – 2 - 5
  Sensitivity Resolution	10mV/div~10V/div
  Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
  Rise time (at input, Typical)	≤5ns	≤3.5ns		≤1.75ns
  Trigger type	Edge
  Trigger model	Auto, Normal, single
  Trigger level range	±4 div from the screen center
  Automatic measurement	Period, Frequency, Mean, PK-PK, Max, Min，RMS、Rise Time、Fall Time、+Width、-Width
  Cursor measurement	ΔV, ΔT,
  Communication interface	USB Type-C


  「Multimeter」Specifications

  Full scale reading	4 1/2 digitals（max 20000 count）
  Testing Modes	Voltage, Current, Resistance, Capacitance, Diode ,Continuity
  Maximum Input Voltage	AC 750V， DC 1000V
  Maximum Input Current	DC : 10A AC : 10A
  Diodes Test	0-2V

  「Waveform Generator」Specifications

  Frequency Output	Sine	0.1Hz~30MHz
  	Square	0.1Hz~6MHz
  	Ramp	0.1Hz~1MHz
  	Pulse	0.1Hz~5MHz
  	Arbitrary Waveform	0.1Hz~5MHz
  Sample Rate	125MSa/s
  Channel	1
  Amplitude	20mVpp-5Vpp（high impedance），10mVpp-2.5Vpp (50Ω)
  Waveform length	8K
  Vertical resolution	14bits
  Load impedance	1MΩ/50Ω
