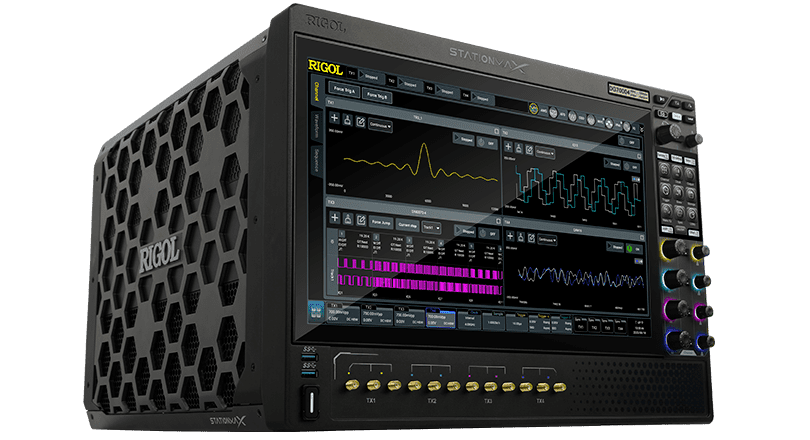

DG70000 Serisi 5GHz bant genişliğine ve 12 GSa/s örnekleme oranına sahip, yüksek performanslı bir arbitrary waveform jeneratör serisidir. 2 ve 4 kanallı modelleri mevcuttur.
Rigol DG70002 5GHz 2 Kanal Arbitrary Waveform Jeneratör Teknik Özellikleri:
| Model | DG70002 |
| Bant Aralığı | 5 GHz |
| Kanal Sayısı | 2 |
| Örnekleme Oranı | 5GSa/s(12GSa/s interpolated) |
| Dikey Çözünürlük | 16-bit (0 Marker/channel) 15-bit (1 Markers/channel) 14-bit (2 Markers/channel) |
| Waveform Hafıza Derinliği | 1.5 Gpts/Kanal |
| SFDR | -70 dBc |
| Dokunmatik Ekran | 15.6'' ana ekran, 3.5'' yardımcı ekran |
| Boyutlar | 439 mm (G) x 310 mm (Y) x 491 mm (D) |
| Ağırlık | 22.5 |
| Model | Bant Aralığı | Kanal Sayısı | Örnekleme Oranı | Dikey Çözünürlük | Arbitrary Wave Uzunluğu |
| DG70002 | 5 GHz | 2 | 5GSa/s(12GSa/s interpolated) | 16 Bit | 1.5 Gpts/Kanal |
| DG70004 | 5 GHz | 4 | 5GSa/s(12GSa/s interpolated) | 16 Bit | 1.5 Gpts/Kanal |
Complex electromagnetic scenario simulation
In the laboratory conditions to build a complex dense, dynamically changing electromagnetic environment to simulate the real environment of electromagnetic radiation, through a reproducible way to effectively promote the speed of model optimization, test the adaptability of the system under test to the complex electromagnetic environment and anti-interference performance.
High Speed Interface Reception Testing
Receive testing requires a signal source capable of creating a wide variety of test code patterns with precisely controlled signal derating capabilities in order to emulate the worst-case conditions as defined by the standard and to perform enhanced testing of the device under test.
Variable sampling rate from 100Sa/s to 12GSa/s for realistic signal detail reproduction
With the new technology platform, the adjustable sampling rate from 100Sa/s to 12GSa/s can reproduce narrow pulses as low as 400ps to truly restore the signal
DC~5GHz output frequency range to meet more scenario applications
Provide a wider frequency output range for more scenario requirements
16bit vertical resolution for more refined level quantization and higher waveform quality
16bit vertical resolution is provided along with high sampling. Compared with 12bit or 14bit vertical resolution, 16bit vertical resolution has finer quantization level to ensure the quality of output signal.
Support 1.5GHz modulation bandwidth to meet a variety of new broadband wireless standards
Up to 1.5GHz modulation bandwidth and digital upconversion function, through IQ modulator, it can output various modulation methods such as 1024QAM/256QAM, combined with built-in frequency hopping mode (frequency hopping interval as low as 128ns), to meet a variety of new broadband wireless standards
Single-channel 4Gpts wavetable length to ensure long signal output at high sampling rates
Provide single-channel up to 1.5G sample points, sequence editor supports up to 16k waveform segments and flexible adjustment functions to meet the long time signal playback and sequence jumping and other functions
Pure signal guarantee, -70dBc spurious-free dynamic range, 10ps total jitter
Provide high purity signal output, -70dBc spurious-free dynamic range, 10ps total jitter, 350fs random jitter, to ensure the true effect of the test
15.6-inch large screen design, electric adjustable screen view
Based on the 15.6-inch 2k HD touch screen and user-friendly UI design, engineers can complete all operations without a PC. Motorized adjustable viewing angle, adapt to user's multi-angle waveform editing operation.
