Rigol DSG5202 9kHz-20GHz 2 Kanal RF Sinyal Jeneratörü
DSG5000 serisi mikrodalga sinyal üretecinin frekans aralığı 9 kHz ile 12 GHz / 20 GHz arasındadır ve 2-8 bağımsız kanal çıkışını destekler.
Rigol DSG5202 9kHz-20GHz 2 Kanal RF Sinyal Jeneratörü Teknik Özellikleri:
| Model | DSG5202 |
| Frekans Aralığı | 9 kHz to 20 GHz |
| Kanal Sayısı | 2 |
| Genlik Göstergeleri Aralığı | -30dBm~+25dBm |
| SSB Faz Gürültüsü | <-133dBc/Hz@1GHz,10kHz offset |
| Modülasyon Fonksiyonu | AM/FM/ØM/Pulse |
| Ekran | 3.5-inç TFT LCD Ekran |
| Boyutlar | 435 mm x 88 mm x 486.3 mm (G x Y x D) |
| Ağırlık | <14 kg |
| Model | Frekans | Kanal Sayısı | Genlik Göstergeleri Aralığı | SSB Faz Gürültüsü | Modülasyon Fonksiyonu |
| DSG5122 | 9 kHz to 12 GHz | 2 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
| DSG5124 | 9 kHz to 12 GHz | 4 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
| DSG5126 | 9 kHz to 12 GHz | 6 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
| DSG5128 | 9 kHz to 12 GHz | 8 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
| DSG5202 | 9 kHz to 20 GHz | 2 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
| DSG5204 | 9 kHz to 20 GHz | 4 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
| DSG5206 | 9 kHz to 20 GHz | 6 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
| DSG5208 | 9 kHz to 20 GHz | 8 | -30dBm~+25dBm | <-133dBc/Hz@1GHz,10kHz offset | AM/FM/ØM/Pulse |
DSG5000 series microwave signal generator single instrument supports up to 8-channel output, and the channels are independently controllable, which improves the integration density and helps simplify the test system setup. Only one instrument can be used to achieve stable phase coherence and ultra-low phase Noise multi-channel signal application, greatly saving your test space and cost.
DSG5000 has excellent inter-channel phase stability, inter-channel phase stability <1°@10GHz, and phase adjustment resolution of 0.01°. The maximum output power is as high as 25dBm, which meets the test requirements of non-linear indicators such as amplifiers.
The typical value of phase noise is <-133dBc/Hz@1GHz, 10kHz, with high signal purity. After selecting a high-stable clock reference, you can get more outstanding nearby phase noise indicators.
Adopt 2U full rack size standard chassis, with rack installation kit, easy to realize channel expansion, easy to integrate and apply, also has front and rear ventilation and heat dissipation design, when multiple units are integrated, the accuracy and stability will not be affected by heat.

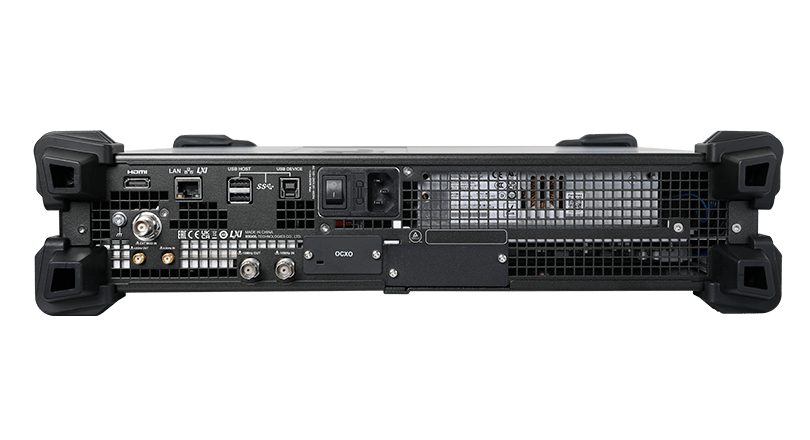

The DSG5000 series microwave signal generator comes with a touch screen and a standard USB/LAN interface, which can be automatically controlled by sending SCPI commands. Support external PAD, display, projector, etc. through the HDMI port on the rear panel, and realize single-unit remote control through Web Control.
