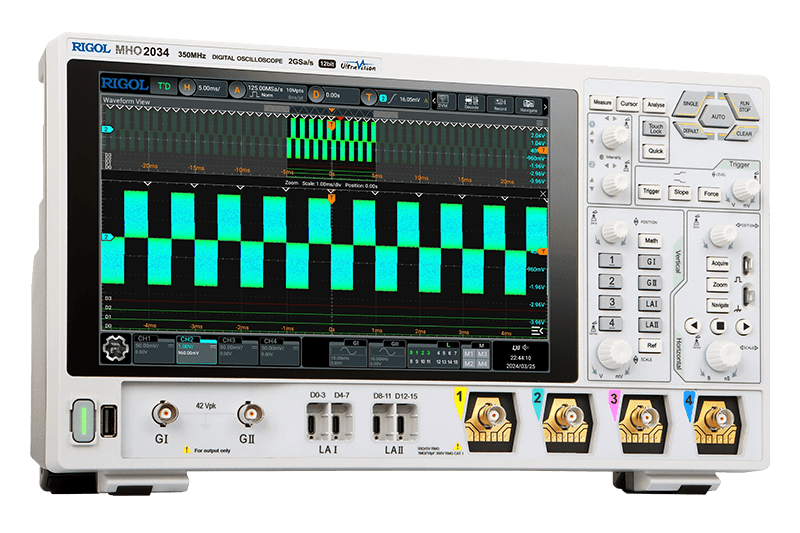

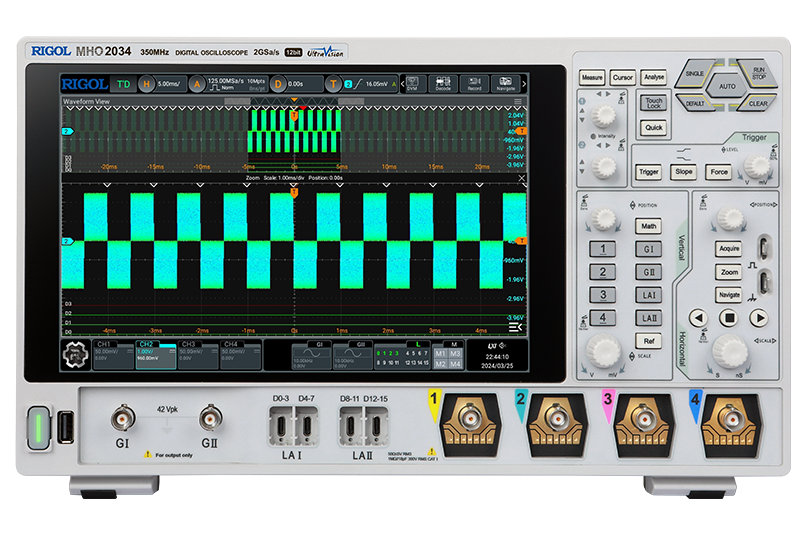

Rigol MHO2034 350 MHz 4 Kanal 2GSa/s Dijital Osiloskop
MHO2000 serisi, 350 MHz'e kadar bant genişliğine sahip, yüksek çözünürlüklü, güvenilir ve uygun maliyetli bir karma sinyal dijital osiloskoptur. 12 bitlik bir ADC'ye sahiptir ve protokol analizi, mantık analizi ve sinyal üretimi gibi işlevleri entegre eder.
Rigol MHO2034 350 MHz 4 Kanal 2GSa/s Dijital Osiloskop Teknik Özellikleri:
| Model | MHO2034 |
| Bant Aralığı | 350 MHz |
| Kanal Sayısı | 4+EXT (Dijital kanal) |
| Real-Time Örnekleme Oranı | 2 GSa/s |
| Max. Hafıza Derinliği | 500 Mpts (2 Kanal) 250 Mpts (Tüm Kanal) |
| 50 Ω'un Altında Hesaplanan Yükselme Süresi (%10-%90 Tipik) | 1.4 ns |
| Max. Dalga Formu Yakalama Oranı | 200,000 wfms/s (Vector mod) 1,000,000 wfms/s (Record mod) |
| Dikey Çözünürlük | 12 bit (yüksek çözünürlük modunda 16 bite kadar) |
| Ekran | 10.1'' multi-touch LCD Ekran |
| Boyutlar | 335 mm (G)×235 mm (Y)×154 mm (D) |
| Ağırlık | 5.3 Kg |
| Model | MHO2024 | MHO2034 |
| Bant Aralığı | 200 MHz | 350 MHz |
| Kanal Sayısı | 4 | 4 |
| Örnekleme Oranı | 2 GSa/s | 2 GSa/s |
| Max Hafıza Derinliği | 500 Mpts | 500 Mpts |
| Dalga Formu Yakalama Oranı | 1,000,000 wfms/s | 1,000,000 wfms/s |
| Dijital Kanal | 16 (Prob Ops.) | 16 (Prob Ops.) |
The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200 μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.
The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, and more, meeting bus testing needs across embedded, automotive, and computing industries.
The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analog and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates.
The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields.
