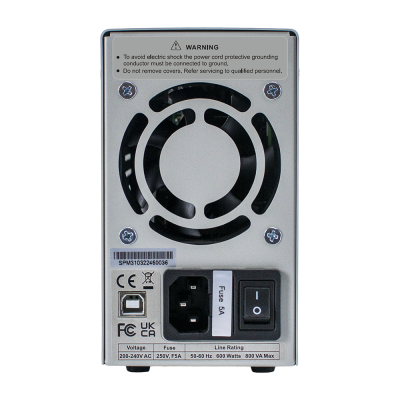

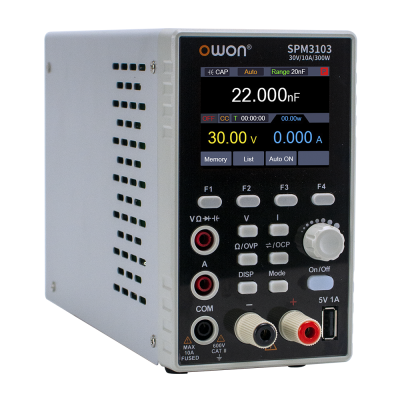

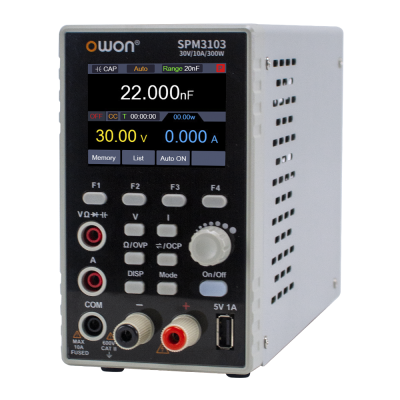

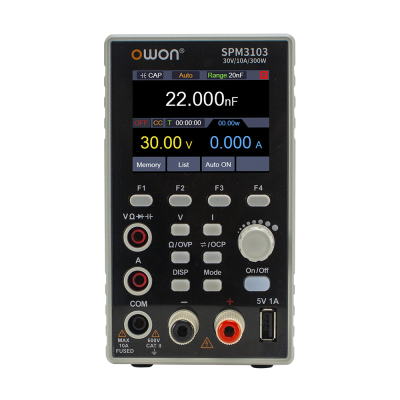

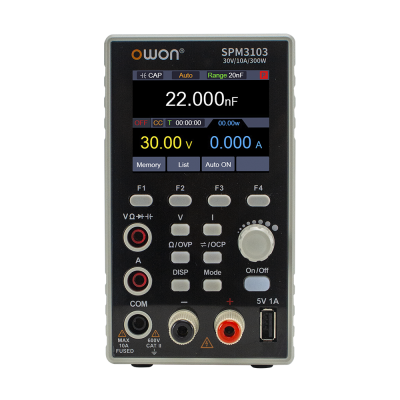

SPM3103 30V/10A Tek Kanal DC Power Multimetre

Owon SPM Serisi Genel Özellikler:

OWON SPM Serisi 1 CH DC Güç Multimetresi

• DC güç kaynağı+multimetre
• Kolay taşıma için küçük gövde
• USB iletişim arayüzü, SCPI desteği

Güç Kaynağı Özellikleri:

• 150W/300w çıkış gücü
• Yüksek çözünürlük: 10mV / 1mA
• Liste dalga formu düzenleme çıkışı, düzenlenebilir 10 grup zamanlama çıkış işlevi
• Aşırı voltaj / aşırı akım koruması
• Çıkış voltajı ve akım eğrisi izleme işlevi

Multimetre Özellikleri:

• 4 1/2 basamaklı multimetre
• Gerilim, akım, kapasitans, direnç, süreklilik ve diyot testini destekler

  Model	SPM3051	SPM6053	SPM3103	SPM6103
  Channel	Single Channel Output
  Total Output Power	150W	300W
  Channel Output	0 - 30V / 0 - 5A	0 - 60V / 0 - 5A	0 - 30V / 0 - 10A	0 - 60V / 0 - 10A
  Display	2.8 inch color LCD display
  Interface	USB Device, USB Host (5V1A)
  Dimension(W x H x D)	82 x 142 x 226 (mm)
  Working Temperature	0 - 40℃
  Weight	Approx. 1.5kg


  ＋DC Power Specifications
  The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters.

  Model		SPM3051	SPM6053	SPM3103	SPM6103
  Rated Output (0℃-40℃)	Voltage	0 - 30V	0 -60V	0 - 30V	0 -60V
  	Current	5A	5A	10A	10A
  	Output Power	150W	300W	300W	300W
  Load Regulation	Voltage	≤30mV
  	Current	≤20mA
  Power Regulation	Voltage	≤30mV
  	Current	≤20mA
  Setting Resolution	Voltage	10mV
  	Current	1mA
  Readback Resolution	Voltage	10mV
  	Current	1mA
  Value Resolution (within 12 months) (25℃±5℃)	Voltage	≤0.1% ± 20mV			≤0.1% ± 30mV
  	Current	≤0.05% ± 10mA
  Readback Value Resolution (25℃±5℃)	Voltage	≤0.1% ± 20mV			≤0.1% ± 30mV
  	Current	≤0.1% ± 10mA
  Ripple/Noise(*)	Voltage(Vp-p)	≤30mVp-p			≤50mVp-p
  	Voltage (rms)	≤3mVrms			≤5mVrms
  	Current (rms)	≤30mAp-p
  Output temperature coefficient (0℃-40℃)	Voltage	100ppm/℃
  	Current	200ppm/℃
  Readback temperature coefficient	Voltage	100ppm/℃
  	Current	200ppm/℃
  Response Time(50%-100% rated load)		≤1.0ms
  Storage		4 groups of data

  * Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to the output terminal for testing.

  ＋Multimeter Specifications

  Full Scale Reading	4½ digits	Auto Range	√
  Measure	Voltage, Current, Capacitance, Resistance, Continue，Diode(0-2V) test
  Capacitance	20.000nF,200.00nF,2.0000uF,20.000uF,200.00uF, 2.0000mF: ±(3.0%±10digit)
  Voltage	DCV: 200.00mV: ±(0.3%±10digit), 2.0000V, 20.000V, 200.00V,1000V: ±(0.3%±5digit), ACV: 200.00mV, 2.0000V, 20.000V, 200.00V: ±(0.8%±10digit)  750V: ±(1%±10digit)
  Current	DCA: 200.00mA:±(0.8%±10digit),10.000A: ±(2.5%±10digit) ACA: 200.00mA:±(1%±10digit),10.000A: ±(2.8%±10digit)
  Impedance	200.00Ω,2.0000kΩ,20.000kΩ,200.00kΩ,2.0000MΩ: ±(0.8%±10digit),20.000MΩ: ±(1%±3digit) 100MΩ: ±(5%±10digit)
